4-26 Semi-Automatic Brick Making Machine: Production Line, Capacity and Applications

The 4-26 semi-automatic brick making machine is designed for customers who need higher production efficiency and a more complete concrete block production system.

Compared with smaller brick making machines, the 4-26 can be combined with a mixer, belt conveyor and other supporting equipment to create a practical block production line.

It can produce different types of concrete blocks by changing molds and is suitable for small and medium-sized block factories, building material businesses and customers planning to expand their production capacity.

The photos and video on this page show a real CHUANQI 4-26 machine and production setup inside our factory.

4-26 Brick Making Machine Factory Video

What Is the 4-26 Brick Making Machine?

The 4-26 is a concrete block making machine designed for customers who require more efficient and stable block production.

The machine uses vibration and pressure to compact mixed concrete materials inside the mold.

Common raw materials include:

• Cement
• Sand
• Stone powder
• Fine aggregates
• Concrete mixture
• Other suitable construction materials

After the materials are prepared and mixed, they can be transferred to the brick machine for forming.

By changing different molds, one machine can produce several types and sizes of concrete blocks.

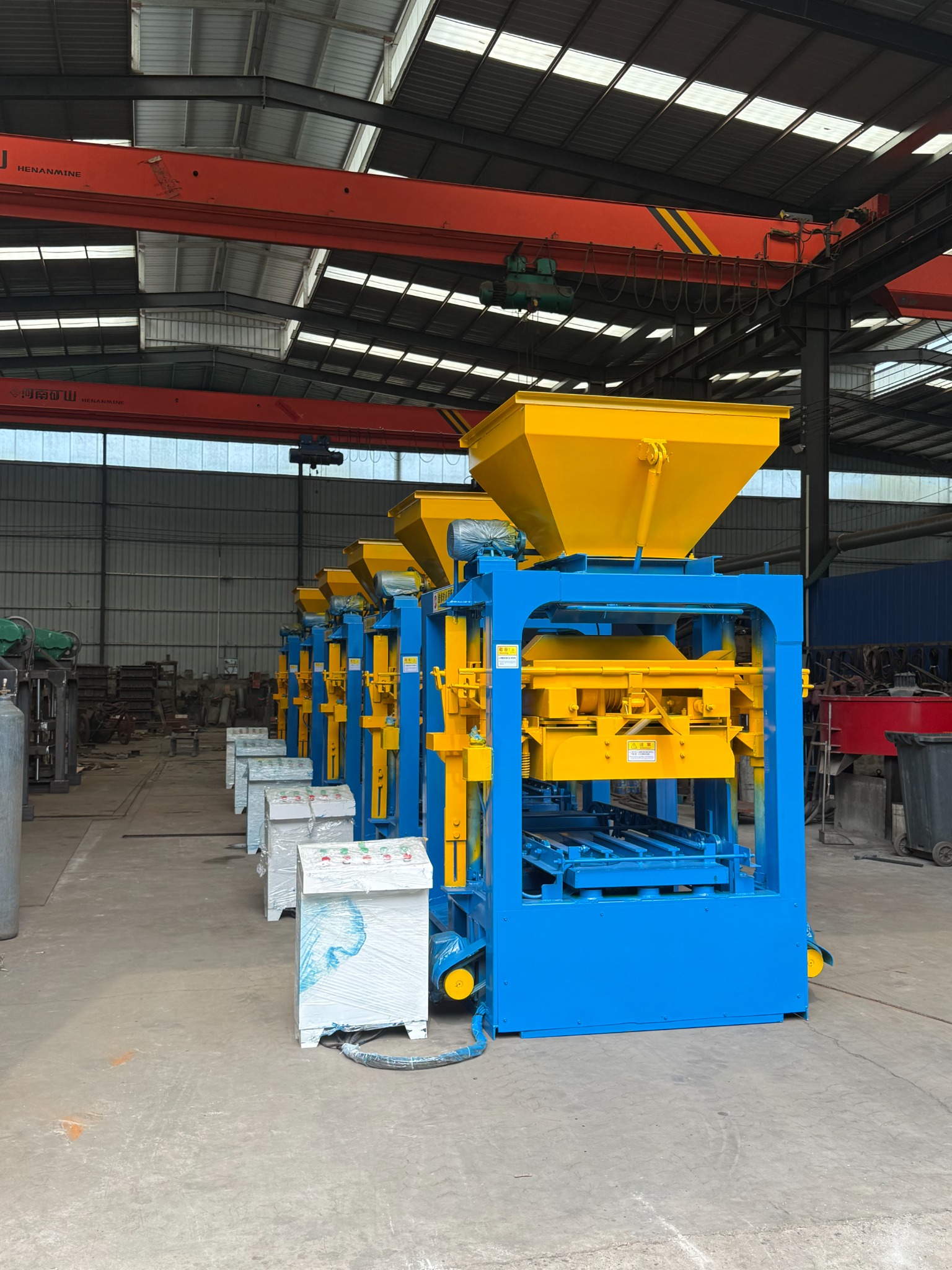

Real CHUANQI 4-26 Machines in Our Factory

The image above shows several 4-26 machines being prepared inside the CHUANQI factory.

This type of machine uses a strong steel frame and a large feeding hopper and can be configured according to the customer's required block type, voltage and production requirements.

Before shipment, the machine can be tested at our factory so that customers can check its operation and forming performance.

How Does the 4-26 Brick Making Machine Work?

The basic production process of the 4-26 is straightforward.

1. Raw Material Preparation

Cement, sand and other aggregates are prepared according to the required concrete mixture.

2. Mixing

The raw materials are mixed evenly using a concrete or pan mixer.

3. Material Conveying

A belt conveyor can transport the mixed material from the mixer to the brick machine.

4. Feeding

The prepared material enters the feeding hopper of the 4-26.

5. Vibration and Forming

The material is fed into the mold and compacted through vibration and pressing.

6. Mold Lifting

After forming, the mold is lifted and the newly produced concrete blocks remain on the pallet.

7. Block Transfer and Curing

The fresh blocks are moved away from the machine and transferred to the curing area.

4-26 Brick Making Machine Production Line

The 4-26 can be used as part of a more complete semi-automatic brick production line.

A typical configuration can include:

• 4-26 brick making machine
• Pan mixer
• Belt conveyor
• Brick pallets
• Brick cart
• Optional material handling equipment

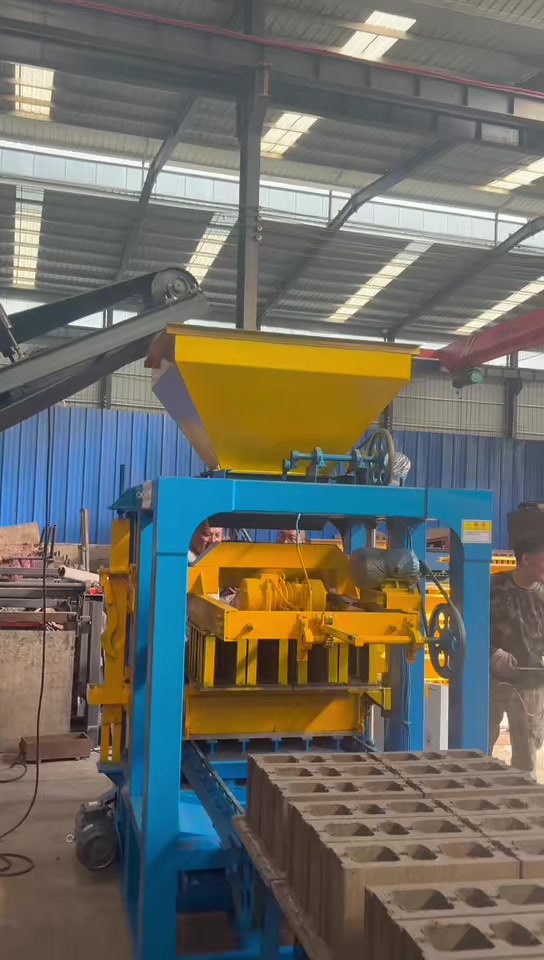

The production line shown above includes a mixing system, belt conveyor and brick making machine.

Using a belt conveyor can reduce manual material handling and make the production process more efficient.

The exact production line configuration can be adjusted according to the customer's budget and required daily capacity.

What Blocks Can the 4-26 Produce?

The 4-26 can produce different concrete products by changing molds.

Typical products include:

• Hollow concrete blocks
• Solid concrete blocks
• Cement blocks
• Construction blocks
• Paving blocks
• Interlocking blocks
• Other customized concrete products

Customers can provide:

• Block photos
• Block dimensions
• Number of holes
• Required block shape

and CHUANQI can recommend or customize the corresponding mold.

One machine does not have to produce only one block type. Different molds can be installed when different products are required.

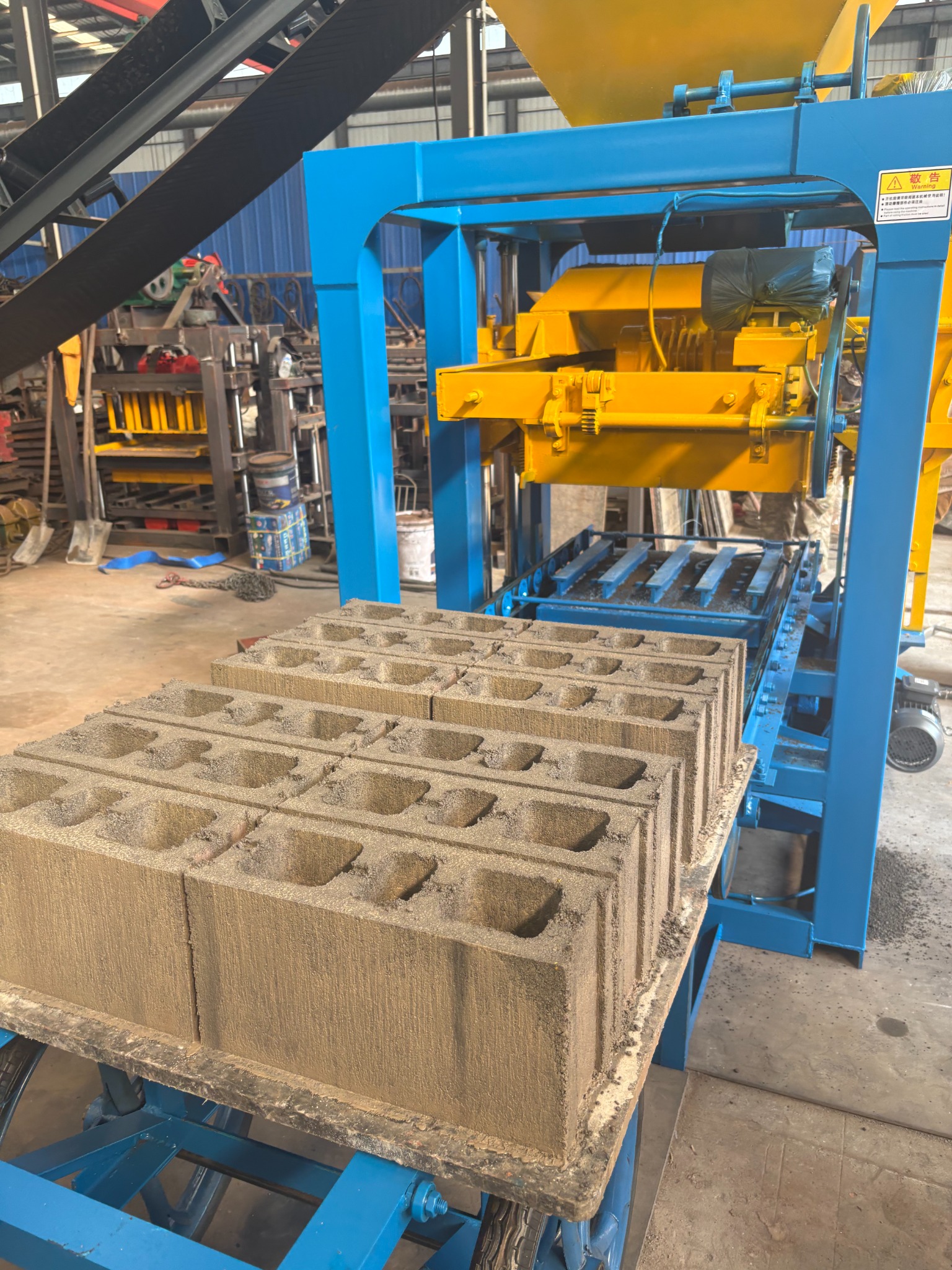

Real Block Forming Result

This factory photo shows freshly formed concrete hollow blocks produced by the machine.

Good block quality depends not only on the brick machine itself but also on several production factors, including:

• Raw material quality
• Cement ratio
• Moisture content
• Aggregate size
• Vibration time
• Mold condition
• Operator experience

For this reason, the actual production result should be evaluated according to the customer's local raw materials and required block specifications.

4-26 Brick Machine Production Capacity

The actual production capacity of a 4-26 machine depends heavily on the block size and mold design.

A machine producing smaller hollow blocks may achieve a higher daily output than when producing larger or heavier solid blocks.

The main factors affecting production capacity include:

• Block dimensions
• Number of blocks produced per cycle
• Hollow or solid block design
• Mold configuration
• Raw material preparation
• Worker efficiency
• Feeding speed
• Pallet handling
• Production hours per day

Therefore, customers should not select a machine based only on a theoretical maximum output.

For a more accurate recommendation, it is better to provide the required block dimensions and daily production target before ordering.

Advantages of the 4-26 Brick Making Machine

Strong Machine Structure

The machine is designed with a heavy steel frame for stable production.

Flexible Mold System

Different molds can be used to produce different concrete block types.

Production Line Compatibility

The machine can work together with mixers and belt conveyors for more efficient production.

Suitable for Different Markets

Block molds can be customized according to local construction standards.

Voltage Customization

Electrical configuration can be adjusted according to the customer's local power supply.

Factory Testing

The machine can be tested before shipment and a working video can be provided for customer confirmation.

4-26 vs Small Mobile Brick Making Machines

Small mobile brick machines and the 4-26 are designed for different production levels.

A small mobile machine is usually more suitable for:

• Lower startup budgets
• Smaller daily output
• Simple production sites
• Customers beginning a small block business

The 4-26 is more suitable for:

• Customers requiring higher production efficiency
• Fixed block factories
• Production lines with mixers and conveyors
• Businesses planning long-term production
• Customers who want to expand production capacity

If your production target has increased beyond the capacity of a small manual or mobile machine, the 4-26 may be a more suitable upgrade.

What Supporting Equipment Does a 4-26 Line Need?

The supporting equipment depends on the production target and level of automation.

A basic setup may include:

4-26 brick machine + mixer + pallets

For improved efficiency, customers can add:

Mixer + belt conveyor + 4-26 machine + pallets + brick cart

Larger production projects may use additional material handling and stacking equipment.

There is no need for every customer to purchase the same production line.

CHUANQI can recommend a configuration according to the customer's:

• Budget
• Block type
• Factory area
• Daily capacity
• Labor conditions
• Local electricity

How to Choose the Correct 4-26 Configuration

Before ordering, please confirm the following information:

• What type of block do you want to produce?
• What is the exact block size?
• Is the block hollow or solid?
• How many blocks do you want to produce per day?
• What is your local voltage?
• Do you need a mixer?
• Do you need a belt conveyor?
• How many different molds do you need?
• Do you already have a freight forwarder?
• What is the destination country or port?

With this information, we can recommend a more suitable configuration instead of simply offering the largest or most expensive production line.

4-26 Brick Making Machine Price

The final 4-26 brick making machine price depends on the selected configuration.

The total cost can be affected by:

• Main machine configuration
• Mold type
• Number of molds
• Mixer size
• Belt conveyor
• Pallets
• Other supporting equipment
• Voltage requirements
• Wooden packaging
• Destination country
• Shipping terms

A customer purchasing only the main machine will therefore have a different budget from a customer purchasing a complete production line.

For an accurate quotation, please provide:

Block size + daily production requirement + local voltage + destination country

We can then calculate a suitable machine configuration and shipping solution.

Shipping Options for the 4-26 Brick Making Machine

CHUANQI can support different international shipping methods according to the customer's requirements.

Common options may include:

• Delivery to the customer's freight forwarder in China
• Sea freight to the destination port
• CIF shipping
• DDP shipping where available

If the customer already has a Chinese freight forwarder, the machine can also be transported to the forwarder's warehouse.

If the customer has no import experience, please tell us your destination country so that we can check a suitable shipping solution.

Why Choose CHUANQI?

CHUANQI is a professional brick making machine manufacturer in China.

We provide:

• Brick making machines
• Customized block molds
• Concrete mixers
• Belt conveyors
• Brick pallets
• Production line solutions
• Voltage customization
• Factory testing
• Machine working videos
• Spare parts support
• Technical assistance
• International shipping support

Our goal is to help customers choose a machine based on their real production requirements rather than simply recommending a larger machine.
