4-35A Brick Making Machine for Hollow and Solid Concrete Blocks

The CHUANQI 4-35A brick making machine is a compact semi-automatic concrete block machine designed for small and medium-sized block production businesses. It uses vibration forming technology to produce strong and consistent concrete blocks from cement, sand, stone powder and other suitable aggregates.

With customized molds, the same machine can produce different hollow blocks, solid blocks and paving bricks. It is a practical choice for customers who need flexible brick sizes without investing in a large fully automatic production line.

Main Features of the 4-35A Brick Making Machine

• Approximately 35 seconds per forming cycle
• Vibration forming for compact and consistent blocks
• Customizable molds for different block shapes and sizes
• Available for 220V, 380V or 440V power supply
• Compact steel structure with simple operation
• Suitable for hollow blocks, solid blocks and paving bricks
• Optional mixer, belt conveyor, pallets, brick cart and stacker
• Suitable for small and medium-sized concrete block factories

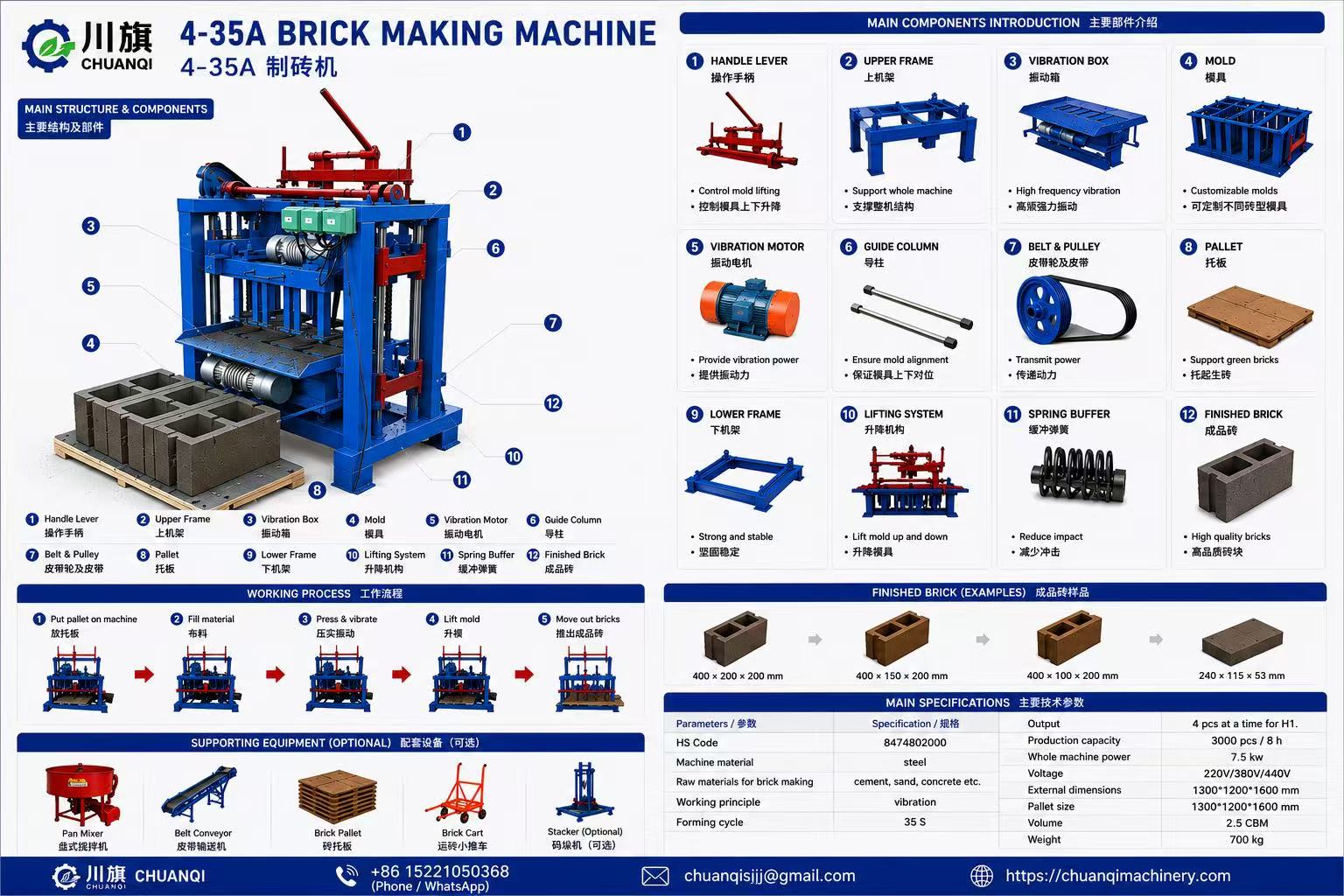

The machine is operated with a handle lifting system and uses vibration motors to compact the mixed raw material inside the mold. Its guide columns help keep the mold aligned during production, while the spring buffer system reduces impact on the machine structure.

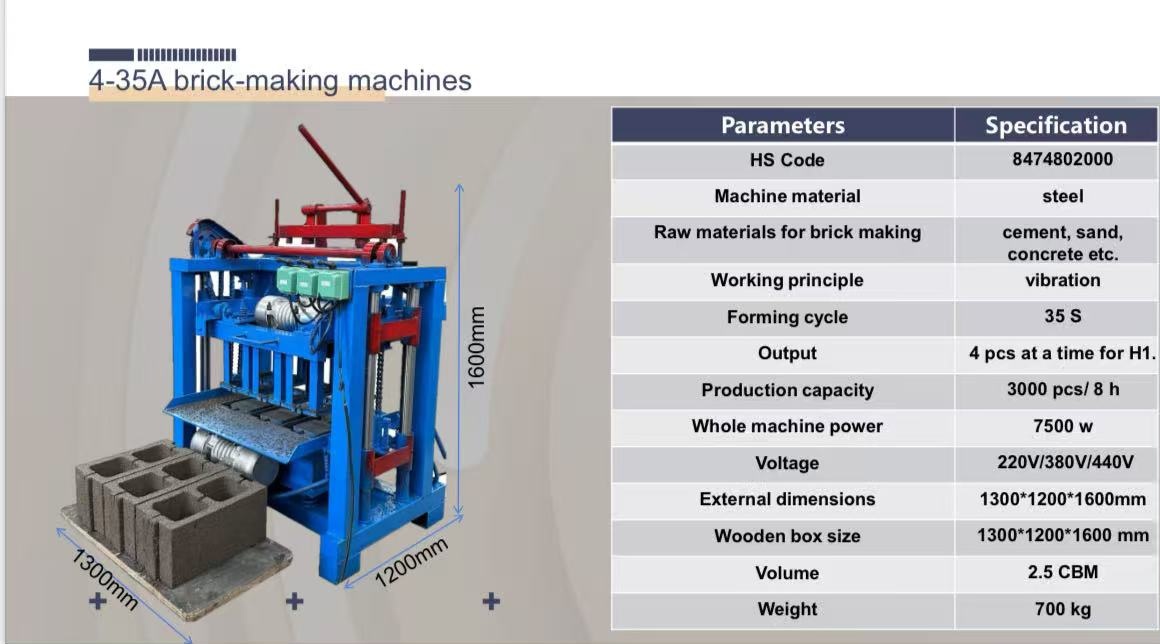

4-35A Technical Specifications

Typical actual output is approximately 1,400–1,500 blocks per 8-hour shift. Maximum theoretical output varies according to block size, mold, raw materials and worker efficiency. Send us your required block dimensions for an accurate capacity calculation.

What Blocks Can the 4-35A Produce?

The 4-35A uses replaceable molds. CHUANQI can customize the mold according to the block sample, drawing or exact dimensions supplied by the customer.

• 400 × 200 × 200 mm hollow blocks
• 400 × 150 × 200 mm hollow blocks
• 400 × 100 × 200 mm hollow blocks
• 240 × 115 × 53 mm solid bricks
• Custom solid concrete blocks
• Paving bricks and interlocking blocks

The number of blocks produced in each cycle changes with the block dimensions and mold design. Before quotation, customers should confirm the length, width, height and number of holes required.

How Does the 4-35A Work?

The basic production process is straightforward:

1. Place a brick pallet on the machine.
2. Fill the mold with the prepared concrete mixture.
3. Press and vibrate the material to form the blocks.
4. Lift the mold after forming.
5. Move the pallet with the fresh blocks to the curing area.

For more efficient production, customers can add a pan mixer, belt conveyor, brick pallets, brick cart or stacker according to their factory layout and daily production target.

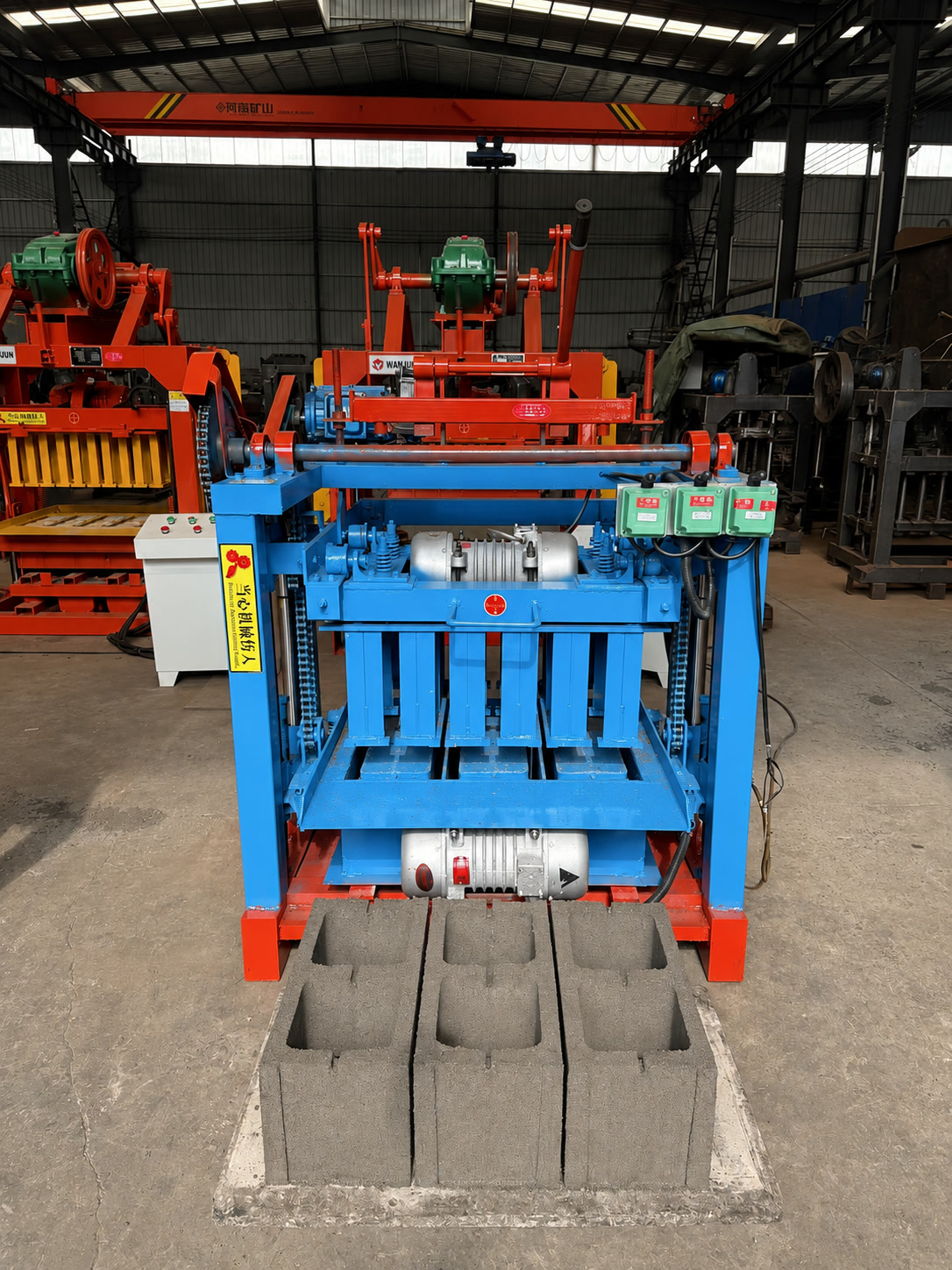

Watch the 4-35A Factory Test

This real factory video shows the machine, mold action and block forming result before delivery.

Raw Materials

Depending on local availability and the required block strength, the machine can work with mixtures containing:

• Cement
• Sand
• Stone powder
• Crushed stone aggregate
• Other suitable concrete materials

The raw-material ratio should be adjusted according to local materials, block type and required strength. Correct mixing and moisture control are important for producing well-shaped blocks.

Is the 4-35A Suitable for Your Business?

The 4-35A is suitable for customers who:

• Want to start or expand a small or medium-sized block factory
• Need several block sizes using replaceable molds
• Have access to local workers for feeding and moving fresh blocks
• Prefer a lower investment than a fully automatic production line
• Need a compact machine that is easier to operate and maintain

Because this is a pallet-type stationary machine, customers should also prepare enough pallets and an area for moving and curing the fresh blocks.

What Information Is Needed for a Quotation?

To receive an accurate machine and shipping quotation, please send:

1. The block photos or exact dimensions in millimetres
2. Hollow, solid, paving or interlocking block requirements
3. Required daily production capacity
4. Local voltage, frequency and phase
5. Required supporting equipment
6. Destination country and nearest seaport
7. Whether you prefer CIF, DDP or delivery to a freight forwarder in China
