Production capacity

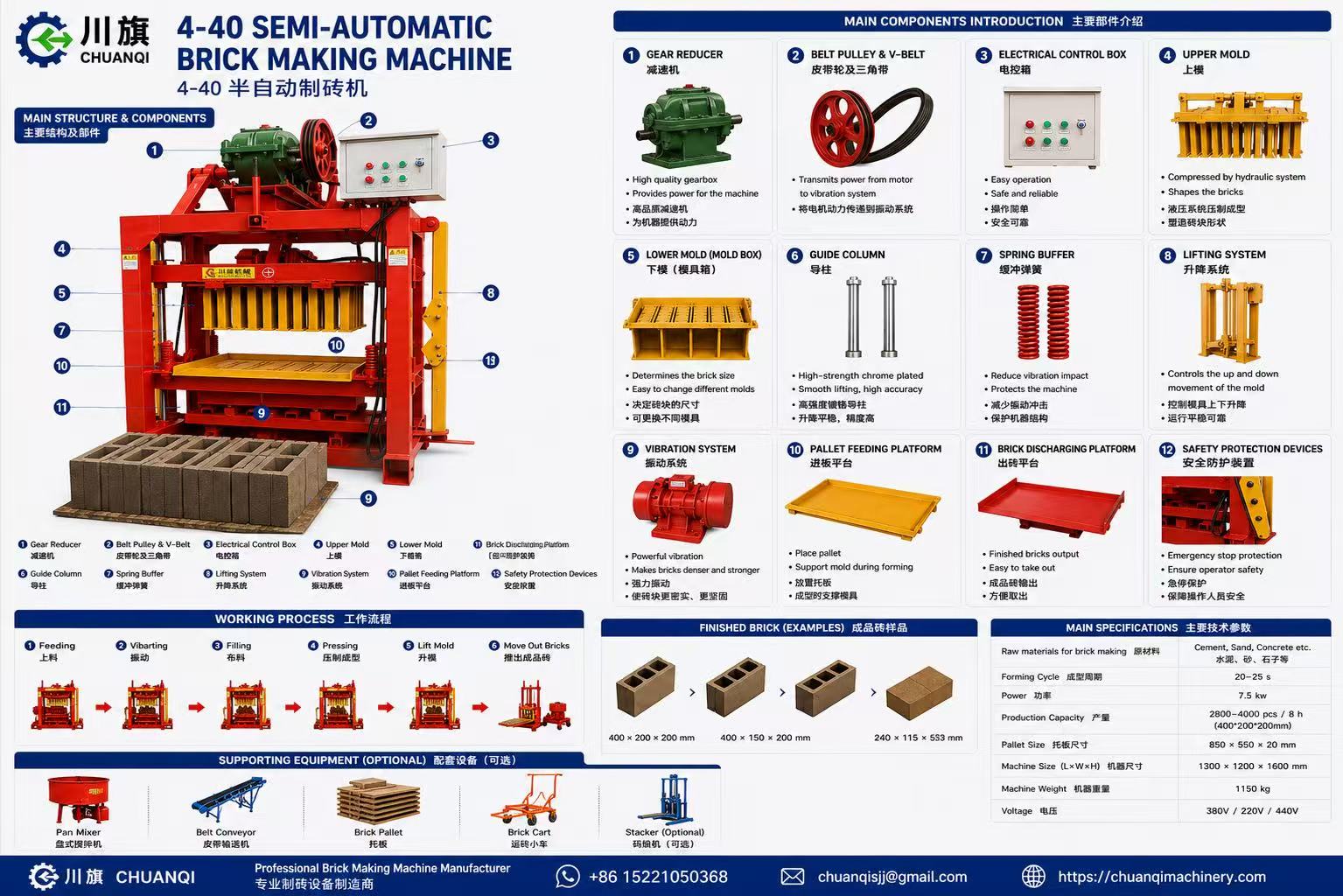

4-40 BRICK MAKING MACHINE
Commercial Brick Making Machine for Growing Block Factories
The CHUANQI 4-40 is a vibration-type brick making machine designed for commercial block production. It can be equipped with customized molds for different block sizes and is suitable for producing hollow blocks, solid blocks, paving blocks and other customized concrete products.
KEY PRODUCTION DATA
4-40 Production at a Glance
Forming cycle
Output for H1
Whole machine power
TECHNICAL SPECIFICATIONS
Verified 4-40 Machine Data
| Working principle | Vibration |
|---|---|
| Forming cycle | 40 s |
| Production capacity | 2,880 pcs / 8h |
| Output | 4 pcs at a time for H1 |
| Whole machine power | 8,800 W / 8.8 kW |
| Voltage | 220V / 380V / 440V |
| Machine dimensions | 1600 × 1100 × 2050 mm |
| Wooden box size | 1700 × 1200 × 2100 mm |
| Volume | 4.3 CBM |
| Weight | 1,150 kg |
| Raw materials | Cement, sand, concrete, etc. |
| Machine material | Steel |

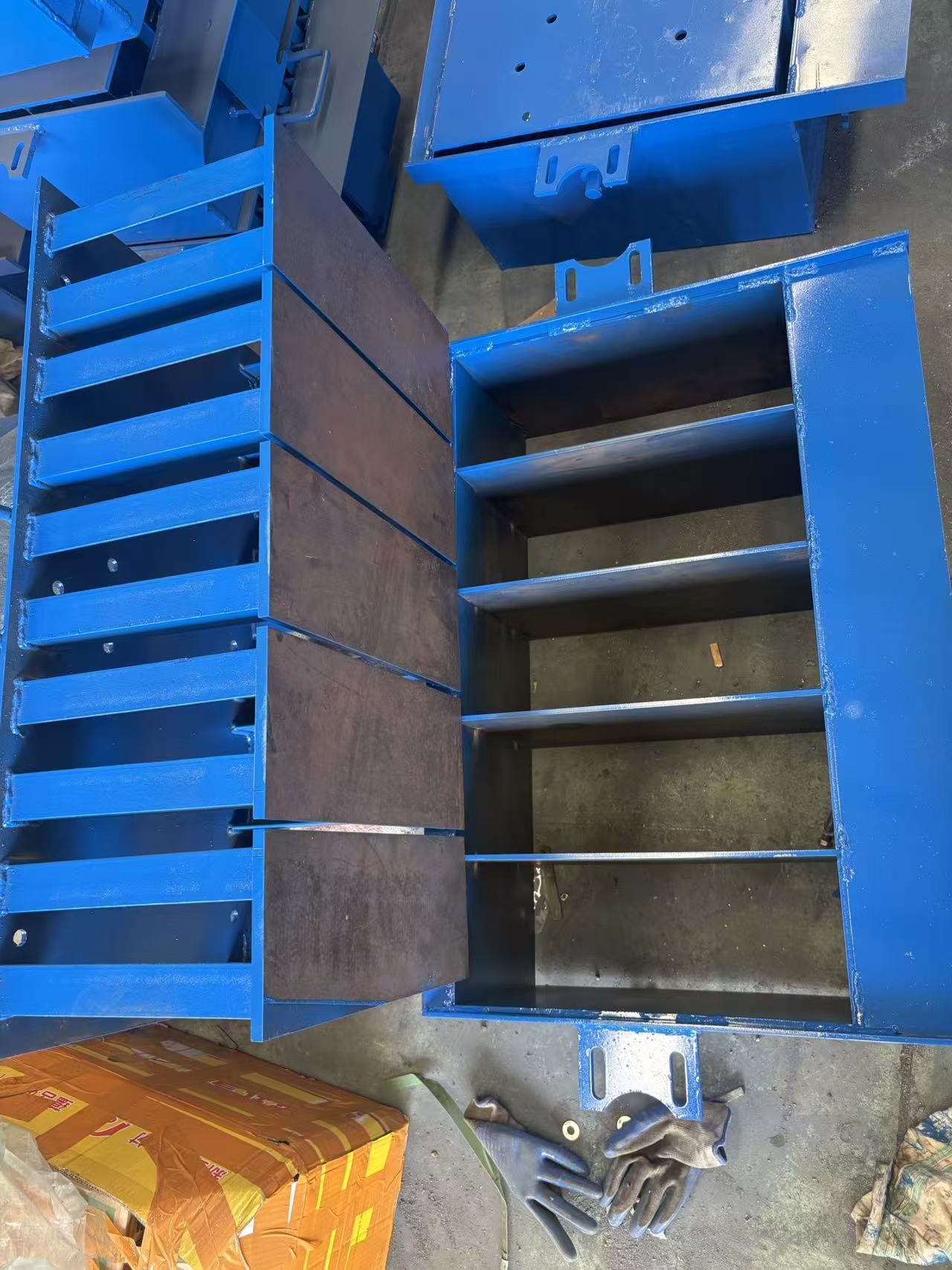

CUSTOMIZED BRICK MOLDS
Produce Different Bricks with Customized Molds
The CHUANQI 4-40 brick making machine can be equipped with customized molds according to the customer's required brick shape and dimensions.
By changing the mold, the machine can produce different concrete products such as hollow blocks, solid blocks, paving blocks and other customized brick types.
Hollow blocksSolid blocksPaving blocksCustomized brick types
Send us your brick photo and dimensions, and we will recommend the suitable mold for your project.
MACHINE APPLICATION / RAW MATERIALS
For Customized Concrete Products
Machine application
Hollow blocks, solid blocks, paving blocks and other customized concrete products.
Raw materials
Cement, sand, concrete, etc.
Machine material
Steel
GET A QUOTE
Send Your Brick Photo and Dimensions
Send us your brick photo and dimensions, and we will recommend the suitable mold for your project.
